Titanium Round Bars

Titanium Round Bars, Titanium Round Bars Manufacturers, Titanium Round Bars Suppliers, Titanium Round Bars Stockists, Titanium Round Bars Exporters

Titanium Round Bars Manufacturers In India, Titanium Round Bars Suppliers In India, Titanium Round Bars Stockists In India, Titanium Round Bars Exporters In India

Titanium Grade 2 Round Bars

Titanium Round Bars Manufacturers in Mumbai, Titanium Round Bars Suppliers in Mumbai, Titanium Round Bars Stockists in Mumbai, Titanium Round Bars Exporters in Mumbai

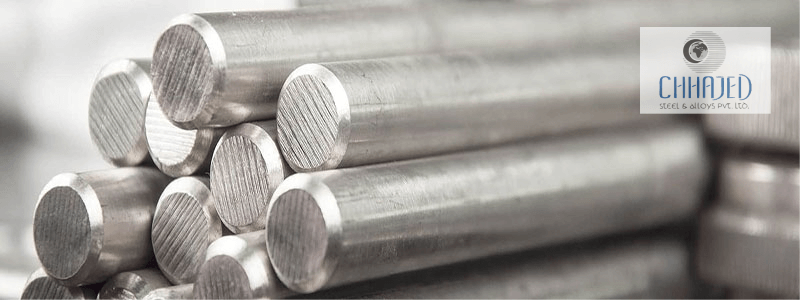

Titanium Round Bar is a light in weight and has high corrosion resistance and ability to resist extreme temperatures and useful in various industrial applications. It is a cylindrical metal bar stock which has many commercial and industrial applications. They are available in a wide range of sizes, grades and specifications.

Titanium Flat Bar is used in a wide range of architectural and structural applications, they are long and rectangular-shaped metal bars. Titanium flat bar is important as a combining agent with many metals including aluminum, iron and molybdenum and they are strong as steel but much less density.

Titanium Rectangular Bar possesses tensile strengths from 30,000 psi to 200,000 psi, which is equivalent to the strength of other alloy steel. Titanium square bar common applications include ornamental iron work and protective barriers on windows, they are widely used in many industries for general assembly or manufacturing.

This melting point is approximately 400°F i.e., which is above the melting point of steel. Titanium rectangular bar are used for general repairs of plant equipment and railings. Titanium Hollow Bar has combination of thermal expansion which is lower than steels and less than half that of aluminum, they are round in shape and it looks like a pipe or a tube.

All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!

Specification Schedule of Titanium Round Bar

Specifications	ASTM B348/ ASTM SB348
Dimensions	EN, DIN, JIS, ASTM, BS, ASME, AISI
Size	5 mm To 500 mm
Diameter	0.1 mm to 100 mm
Length	100 mm To 3000 mm Long & Above
Finish	Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Tolerance	H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients' requirements
Form	Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc.

Chemical Properties of Titanium Round Bar

Grade	C	N	O	H	Ti	Fe
Gr 1	.08 Max	.03 Max	.18 Max	.015 Max	Bal	.20 Max
Gr 4	.08 Max	.05 Max	.40 Max	.015 Max	Bal	.50 Max
Gr 7	.08 Max	.03 Max	.25 Max	.015 Max	Bal	.30 Max
Gr 9	.08 Max	.03 Max	.15 Max	.015 Max	-	.25 Max
Gr 12	.08 Max	.03 Max	.25 Max	0.15 Max	-	.30 Max

Mechanical Properties of Titanium Round Bar

Grade	Tensisle Strength		Yield Strength				Elogation In 2 In. Or 50mm Min.,%	Bend Test
	Min	Min	Min	Min	Max	Max		Under 0.070 In. (1.8mm) Thickness	0.070 To 0.187 In. (1.8mm To 4.75mm) Thickness
	Ksi	Mpa	Ksi	Mpa	Ksi	Mpa		Under 0.070 In. (1.8mm) Thickness	0.070 To 0.187 In. (1.8mm To 4.75mm) Thickness
1	35	240	20	138	45	310	24	1.5T	2T
2	50	345	40	275	65	450	20	2T	2.5T
3	65	450	55	380	80	550	18	2T	2.5T
4	80	550	70	483	95	655	15	2.5T	3T
5	130	895	120	828	...	...	10	4.5T	5T
7	50	345	40	275	65	450	20	2T	2.5T
9	90	620	70	483	...	...	15	2.5T	3T
12	70	483	50	345	...	...	18	2T	2.5T

Equivalent Standard of Titanium Round Bar

Grades	UNS	Grades	UNS
CP Grade 1	R50350	CP Grade 2	R50400
CP Grade 3	R50550	CP Grade 4	R50700
Titanium Grade 6	R54520	CP Grade 7	R52400
Titanium Grade 9	R56320	CP Grade 11	R52252
CP Grade 12	R53400	CP Grade 16	R52402
CP Grade 17	R52252	CP Grade 26	R52404
CP Grade 27	R52404	Titanium Grade 28	R56323
Titanium Grade 29	R56404	Ti-10V-2Fe-3Al	R56410
Ti-13V-11Cr-3Al3-8-6-44	R58010	Ti-2.5Cu	–
Ti-3Al-8V-6Cr-4Mo-4Zr	–	Ti-4Al-4Mo-2Sn	–
Ti-5-2.5Sn ELI	R54521	Ti-5.8Al-4.0Sn-3.5Zr-0.7Nb-0.5Mo-0.35Si-0.06C	–
Ti-5Al-1Sn-1Zr-1V-0.8Mo	–	Ti-5Al-2Zr-2Sn-4Mo-4Cr	R58650
Ti-6Al-2Sn-2Zr-2Mo-2Cr-0.15Si	R56222	Ti-6Al-2Sn-4Zr-2Mo	R54620
Ti-6Al-2Sn-4Zr-6Mo	R56260	Ti-6Al-4V	R56400
Ti-6Al-4V ELI	R56407	Ti-6Al-6V-2Sn	R56620
Ti-6Al-7Nb	R56700	Ti-7Al-4Mo	R56740
Ti-8Al-1Mo-1V	R54810	TIMETAL 21S	–

Basic Type of Titanium Round Bar

Titanium Round Bar

Titanium Flat Bars

Titanium Rectangular Bar

Titanium Hex Bars

Titanium Square Bars

Titanium Hollow Bars
