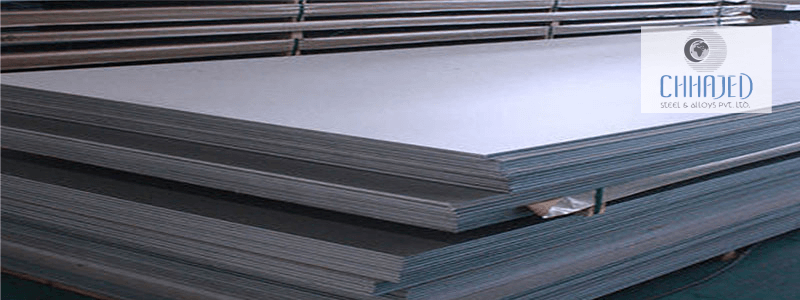

Super Duplex 2507 Sheets & Plates
Super Duplex 2507 Sheets & Plates Manufacturers in Mumbai, Super Duplex 2507 Sheets & Plates Suppliers in Mumbai, Super Duplex 2507 Sheets & Plates Stockists in Mumbai, Super Duplex 2507 Sheets & Plates Exporters in Mumbai
ASTM A240 Grade S32750 its low carbon content greatly lowers the risk of carbide precipitation, has better corrosion resistance than stainless steel 904L, in dilute sulfuric acid contaminated with chloride ions. Therefore it is highly resistant to carbide-related intergranular corrosion. SA 240 UNS S32760 Sheet at a minimum of 1925°F solution annealing should be done and annealing should be followed immediately by a rapid air or water quench, they should be solution annealed and quenched either after hot or cold forming.
Heat-treated products should be pickled and rinsed to obtain corrosion resistance. UNS S32750 Plate provides good weldability and it can be joined to itself or other materials by gas tungsten arc welding, plasma arc welding, shielded metal arc welding, flux-cored wire, or submerged arc welding. ASTM A240 UNS S32760 Plate is mainly used in offshore oil and gas applications and in wells where brine has been injected to enhance recovery or at naturally high brine levels.
They provide excellent resistance to chloride stress corrosion cracking. Because of its higher alloy content, it is superior to UNS S32205 in strength and corrosion resistance. S32750 Plate has higher yield strength and lower ductility than the austenitic steels so fabricators may use high forming forces, increased radius of bending, and increased allowance for spring back. It should be followed by a solution annealed minimum at 1925°F and a rapid air or water quench.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of Super Duplex 2507 Sheets & Plates
Super Duplex Steel S32750/S32760 Sheet, Plate & Coil Specifications
|
Specifications |
ASTM A240 / ASME SA240 |
Thickness |
4mm-100mm |
Width
|
1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
Length |
2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
Surface |
2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand
blast, Brush, etching, etc |
Finish |
Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
Form |
Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc |
Chemical Properties of Super Duplex 2507 Sheets & Plates
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
Fe |
Super Duplex S32750 Round Bar |
0.030 max |
1.20 max |
0.80 max |
0.035 max |
0.020 max |
24.00 – 26.00 |
3.00 – 5.00 |
6.00 – 8.00 |
0.24 – 0.32 |
58.095 min |
Super Duplex S32760 Bar |
0.05 max |
1.00 max |
1.00 max |
0.030 max |
0.010 max |
24.00 – 26.00 |
3.00 – 4.00 |
6.00 – 8.00 |
0.20 – 0.30 |
57.61 min |
Mechanical Properties of Super Duplex 2507 Sheets & Plates
Grades |
Density (g/cm 3) |
Density (lb/in 3) |
Melting Point (°C) |
Melting Point (°F) |
Super Duplex S32750/S32760 Round Bar |
7.8 |
0.281 |
1350 |
2460 |
Equivalent Standard of Super Duplex 2507 Sheets & Plates
STANDARD |
WERKSTOFF NR. |
UNS |
Super Duplex S32750/S32760 |
1.4410 |
S32750 / S32760 |
Basic Type of Super Duplex Sheets & Plates
Super Duplex 2507 Sheets & Plates
Super Duplex 2507 Sheets & Plates
ANSI Super Duplex SS Sheets & Plates
Super Duplex Stainless Steel Sheets & Plates
ASTM A240 Super Duplex Sheets & Plates
Duplex Stainless Steel Sheets & Plates
10mm Thickness Super Duplex 2507 Stainless Steel Sheet
Hot Rolled 2mm 2507 SS Sheet
2507 Austenitic-Ferritic DSS Plates
