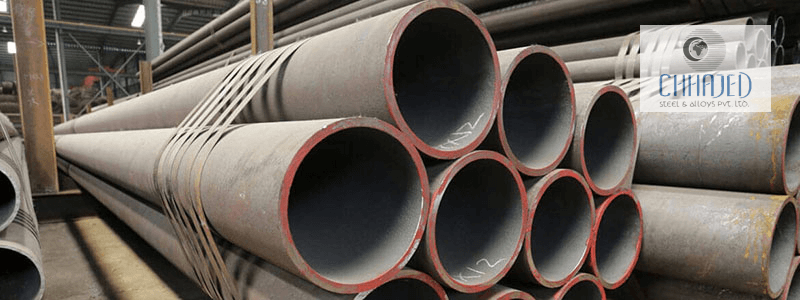

Alloy Steel P5 Pipes
Alloy Steel P5 Pipes Manufacturers in Mumbai, Alloy Steel P5 Pipes Suppliers in Mumbai, Alloy Steel P5 Pipes Stockists in Mumbai, Alloy Steel P5 Pipes Exporters in Mumbai
The applications of the A335 P5 pipes are seen in in the water treatment, energy, thermal power plants, nuclear power stations and chemical industries. The sa335 P5 seamless pipe has less absolute roughness which makes the dimensions very precise. This feature is useful in applications that are sensitive where calculations have to be precise. The ASTM a335 grade P5 welded pipe can be used in conjunction with the other material made pipes where the application requirements allow. There are other grades of the same A335 such as the P9 and P11 which are used mostly in petrochemical industries. ASTM A335 P5 Seamless Pipe is one of the commonly used pipes in the refineries. It is also used in other industries. The ASME SA 335 Grade P5 Alloy Steel Pipes are made up of a chromium molybdenum alloy that makes it stronger and corrosion resistant.
The chromium addition of the A335 P5 Chrome Pipe is in the range of 4-6%. The P5 steel pipe material also contains other elements such as Silicon, Manganese and Phosphorus in various quantities. The ASTM a335 gr P5 seamless pipe could either be fully annealed or isothermal annealed. But the primary usage is in the refineries. The addition of nickel and manganese add up to the hardness of the pipes. So these pipes are suitable for high temperature applicationsThe normalized and tempered conditions are also available. The grade C of the A335 gr P5 alloy pipe can be produced in subcritical annealed condition as well.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of Alloy Steel P5 Pipes
| A335 P5 Pipes Size |
1/2" NB to 36" NB |
| Alloy Steel P5 Pipes Standard |
ASTM A335 P5, SA335 P5 (with IBR Test Certificate) |
| ASTM A335 P5 Pipes Schedules |
SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
| Material Grade P5 Pipes Thickness |
3-12mm |
| ASTM A335 P5 Pipes Tolerance |
Cold drawn pipe: +/-0.1mm
Cold rolled pipe: +/-0.05mm
|
| ASTM A335 P5 Pipes Type |
Seamless / ERW / Welded / Fabricated |
| Craft |
Cold rolled and Cold drawn |
| ASTM A335 P5 Pipes Length |
Standard
Double &
In Cut length also.
|
| GR P5 Pipes available in Form of |
Round, Square, Rectangular, Hydraulic Etc. |
| Specialized in |
Large Diameter ASTM A335 P5 Pipe |
| Alloy Steel A335 P5 Pipes End |
Plain End, Beveled End, Treaded |
| Application |
Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service |
| Additional Testing |
NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
Chemical Properties of Alloy Steel P5 Pipes
| Grades |
C |
Mn |
P |
S |
SI |
Cr |
Mo |
| ASTM A387 Grade 5 |
0.15 max |
0.3 – 0.6 |
0.035 |
0.03 |
0.5 max |
4.00 – 6.00 |
0.45 – 0.65 |
Mechanical Properties of Alloy Steel P5 Pipes
| Tensile (MPa) |
Yield (MPa) |
Elongation (50mm) |
Elongation (200mm) |
Reduction of Area |
| 415 – 585 |
205 min |
18% min |
– |
40% min |
Equivalent Standard of Alloy Steel P5 Pipes
| ASTM |
ASME |
JIS G 3458 |
UNS designation |
| A335 P5 |
SA 335 P5 |
STPA 25 |
K41545 |
| BS |
ISO standard |
ABS |
|
| 3604 P1 625 |
2604 III TS37 |
ABS 14 |
|
Basic Type of Alloy Steel P5 Pipes
Low Alloy Steel P5 Pipes Stockist
Chrome Moly Alloy Steel P5 Pipe
Alloy Steel P5 Chrome Pipe
Alloy Steel P5 Boiler Pipe
ASTM A355 Alloy Steel P5 Pipe
ASTM SA 335 Alloy Steel P5 Pipes
