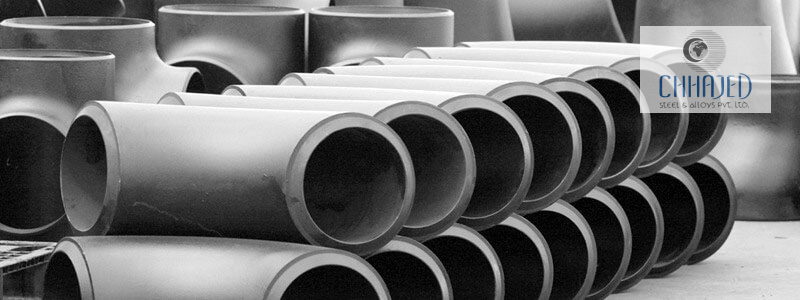

Alloy Steel Pipe Fittings
Alloy Steel Pipe Fittings Manufacturers in Mumbai, Alloy Steel Pipe Fittings Suppliers in Mumbai, Alloy Steel Pipe Fittings Stockists in Mumbai, Alloy Steel Pipe Fittings Exporters in Mumbai
Chhajed Steel & Alloy Pvt Ltd is a leading Alloy Steel Pipe Fittings Manufacturer In India. thiis a weldable pipe fitting that allows for change of direction of flow, to branch off, reduce pipe size or attach auxiliary equipment. Alloy Steel Buttweld Fittings We are specialized in manufacturing pipe fittings such as reducers, caps, elbow, tee, bend, coupling, union, nipple etc. Smooth inner surface and gradual directional changes minimize the action of corrosion and erosion and reduce pressure losses and turbulence. It has many inherent advantages such as it provides permanent leak proof to the fittings. It doesn't make it any less vulnerable to rust when exposed to the elements since it is ferrous The continuous metal structure formed between fitting and pipe gives strength to the system.
Alloy Steel Weld Fittings this mainly used small pipe diameters generally for piping whose nominal diameter is NPS 2 or smaller. Its tensile strength of is between 758-1882 MPa which is higher than the tensile strength of stainless steel. Low Alloy Steel Fittings is a pipe attachment detail in which a pipe is inserted into a recessed area of a Valve, fitting or flange. Alloy Steel Elbow is a pipe attachment detail in which a pipe is inserted into a recessed area of a Valve, fitting or flange. Alloy Steel Tee consists of T-shaped having two outlets, at 90° to the connection to the main line. It is a pipe short piece with a lateral outlet. It is widely used as pipe fittings.The three branches that can change fluid direction. It is widely used in pipe networks for convey liquids and gases.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of Alloy Steel Pipe Fittings
| Grades |
Chrome Moly Grades P1, P5, P9, P11, P22, P91, AISI 4130/ 4140 |
| Specification |
A/SA234 WP1, WP5, WP9, WP11, WP22, WP91 | A/SA182 F1, F5, F9, F11, F22, F91 |
| Type |
Seamless / Welded / Fabricated / Forged |
| Bending Radius |
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Range |
½"NB to 48″NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions |
ANSI/ASME B16.9, B16.28, MSS-SP-43. |
Chemical Properties of Alloy Steel Pipe Fittings
| Grades |
WPB B,C,D,E, |
WPC C,D,E, |
WP11 CL1 |
WP11 CL2, |
WP11 CL3 |
WP22 CL1 |
WP22 CL3 |
WP5 CL1, |
WP5 CL3 |
|
| Carbon |
0.3 |
0.35 |
0.05–0.15 |
0.05–0.20 |
0.05–0.20 |
0.05–0.15 |
0.05–0.15 |
0.15 |
0.15 |
| Manganese |
0.29–1.06 |
0.29–1.06 |
0.30–0.60 |
0.30–0.80 |
0.30–0.80 |
0.30–0.60 |
0.30–0.60 |
0.30–0.60 |
0.30–0.60 |
| Phosporus |
0.05 |
0.05 |
0.03 |
0.04 |
0.04 |
0.04 |
0.04 |
0.04 |
0.04 |
| Sulfur |
0.058 |
0.058 |
0.03 |
0.04 |
0.04 |
0.04 |
0.04 |
0.03 |
0.03 |
| Silicon |
0.10 min |
0.10 min |
0.50–1.00 |
0.50–1.00 |
0.50–1.00 |
0.5 |
0.5 |
0.5 |
0.5 |
| Chromium |
0.4 |
0.4 |
1.00–1.50 |
1.00–1.50 |
1.00–1.50 |
1.90–2.60 |
1.90–2.60 |
4.0–6.0 |
4.0–6.0 |
| Molybdenum |
0.15 max |
0.15 max |
0.44–0.65 |
0.44–0.65 |
0.44–0.65 |
0.87–1.13 |
0.87–1.13 |
0.44–0.65 |
0.44–0.65 |
| Nickel |
0.4 |
0.4 |
|
|
|
|
|
|
|
| Copper |
0.4 |
0.4 |
|
|
|
|
|
|
|
| Others |
Vanadium 0.08 |
Vanadium 0.08 |
|
|
|
|
|
|
|
| AISI Number |
C |
Mn |
P Max. |
S Max. |
Si |
Ni |
Cr |
Mo |
| 4130 |
0.28/0.33 |
0.40/0.60 |
0.035 |
0.040 |
0.20/0.35 |
--- |
0.80/1.10 |
0.15/0.25 |
| 4137 |
0.35/0.40 |
0.70/0.90 |
0.035 |
0.040 |
0.20/0.35 |
--- |
0.80/1.10 |
0.15/0.25 |
| 4140 |
0.38/0.43 |
0.75/1.00 |
0.035 |
0.040 |
0.20/0.35 |
--- |
0.80/1.10 |
0.15/0.25 |
| 4142 |
0.40/0.45 |
0.75/1.00 |
0.035 |
0.040 |
0.20/0.35 |
--- |
0.80/1.10 |
0.15/0.25 |
| 4145 |
0.43/0.48 |
0.75/1.00 |
0.035 |
0.040 |
0.20/0.35 |
--- |
0.80/1.10 |
0.15/0.25 |
| 4147 |
0.45/0.50 |
0.75/1.00 |
0.035 |
0.040 |
0.20/0.35 |
--- |
0.80/1.10 |
0.15/0.25 |
| 4150 |
0.48/0.53 |
0.75/1.00 |
0.035 |
0.040 |
0.20/0.35 |
--- |
0.80/1.10 |
0.15/0.25 |
| 4161 |
0.56/0.64 |
0.75/1.00 |
0.035 |
0.040 |
0.20/0.35 |
--- |
0.70/0.90 |
0.25/0.35 |
| 4320 |
0.17/0.22 |
0.45/0.65 |
0.035 |
0.040 |
0.20/0.35 |
1.65/2.00 |
0.40/0.60 |
0.20/0.30 |
| 4340 |
0.38/0.43 |
0.60/0.80 |
0.035 |
0.040 |
0.20/0.35 |
1.65/2.00 |
0.70/0.90 |
0.20/0.30 |
| 4419 |
0.18/0.23 |
0.45/0.65 |
0.035 |
0.040 |
0.20/0.35 |
--- |
--- |
0.45/0.60 |
| 4615 |
0.13/0.18 |
0.45/0.65 |
0.035 |
0.040 |
0.20/0.35 |
1.65/2.00 |
--- |
0.20/0.30 |
| 4620 |
0.17/0.22 |
0.45/0.65 |
0.035 |
0.040 |
0.20/0.35 |
1.65/2.00 |
--- |
0.20/0.30 |
| 4621 |
0.18/0.23 |
0.70/0.90 |
0.035 |
0.040 |
0.20/0.35 |
1.65/2.00 |
--- |
0.20/0.30 |
| 4626 |
0.24/0.29 |
0.45/0.65 |
0.035 |
0.040 |
0.20/0.35 |
0.70/1.00 |
--- |
0.15/0.25 |
| 4718 |
0.16/0.21 |
0.70/0.90 |
0.035 |
0.040 |
0.20/0.35 |
0.90/1.20 |
0.35/0.55 |
0.30/0.40 |
| 4720 |
0.17/0.22 |
0.50/0.70 |
0.035 |
0.040 |
0.20/0.35 |
0.90/1.20 |
0.35/0.55 |
0.15/0.25 |
| 4815 |
0.13/0.18 |
0.40/0.60 |
0.035 |
0.040 |
0.20/0.35 |
3.25/3.75 |
--- |
0.20/0.30 |
| 4817 |
0.15/0.20 |
0.40/0.60 |
0.035 |
0.040 |
0.20/0.35 |
3.25/3.75 |
--- |
0.20/0.30 |
| 4820 |
0.18/0.23 |
0.50/0.70 |
0.035 |
0.040 |
0.20/0.35 |
3.25/3.75 |
--- |
0.20/0.30 |
| 5120 |
0.17/0.22 |
0.70/0.90 |
0.035 |
0.040 |
0.20/0.35 |
--- |
0.70/0.90 |
--- |
| 5130 |
0.28/0.33 |
0.70/0.90 |
0.035 |
0.040 |
0.20/0.35 |
--- |
0.80/1.10 |
--- |
| 5132 |
0.30/0.35 |
0.60/0.80 |
0.035 |
0.040 |
0.20/0.35 |
--- |
0.75/1.00 |
--- |
| 5135 |
0.33/0.38 |
0.60/0.80 |
0.035 |
0.040 |
0.20/0.35 |
--- |
0.80/1.05 |
--- |
| 5140 |
0.38/0.43 |
0.70/0.90 |
0.035 |
0.040 |
0.20/0.35 |
--- |
0.70/0.90 |
--- |
| 5145 |
0.43/0.48 |
0.70/0.90 |
0.035 |
0.040 |
0.20/0.35 |
--- |
0.70/0.90 |
--- |
| 5147 |
0.46/0.51 |
0.70/0.95 |
0.035 |
0.040 |
0.20/0.35 |
--- |
0.85/1.15 |
--- |
| 5150 |
0.48/0.53 |
0.70/0.90 |
0.035 |
0.040 |
0.20/0.35 |
--- |
0.70/0.90 |
--- |
| 5155 |
0.51/0.59 |
0.70/0.90 |
0.035 |
0.040 |
0.20/0.35 |
--- |
0.70/0.90 |
--- |
| 6150 |
0.48/0.53 |
0.70/0.90 |
0.035 |
0.040 |
0.20/0.35 |
--- |
0.80/1.10 |
0.15 min. |
| 8615 |
0.13/0.18 |
0.70/0.90 |
0.035 |
0.040 |
0.20/0.35 |
0.40/0.70 |
0.40/0.60 |
0.15/0.25 |
| 8617 |
0.15/0.20 |
0.70/0.90 |
0.035 |
0.040 |
0.20/0.35 |
0.40/0.70 |
0.40/0.60 |
0.15/0.25 |
| 8620 |
0.18/0.23 |
0.70/0.90 |
0.035 |
0.040 |
0.20/0.35 |
0.40/0.70 |
0.40/0.60 |
0.15/0.25 |
| 8622 |
0.20/0.25 |
0.70/0.90 |
0.035 |
0.040 |
0.20/0.35 |
0.40/0.70 |
0.40/0.60 |
0.15/0.25 |
| 8625 |
0.23/0.28 |
0.70/0.90 |
0.035 |
0.040 |
0.20/0.35 |
0.40/0.70 |
0.40/0.60 |
0.15/0.25 |
| 8627 |
0.25/0.30 |
0.70/0.90 |
0.035 |
0.040 |
0.20/0.35 |
0.40/0.70 |
0.40/0.60 |
0.15/0.25 |
| 8630 |
0.28/0.33 |
0.70/0.90 |
0.035 |
0.040 |
0.20/0.35 |
0.40/0.70 |
0.40/0.60 |
0.15/0.25 |
| 8637 |
0.35/0.40 |
0.75/1.00 |
0.035 |
0.040 |
0.20/0.35 |
0.40/0.70 |
0.40/0.60 |
0.15/0.25 |
| 8640 |
0.38/0.43 |
0.75/1.00 |
0.035 |
0.040 |
0.20/0.35 |
0.40/0.70 |
0.40/0.60 |
0.15/0.25 |
| 8642 |
0.40/0.45 |
0.75/1.00 |
0.035 |
0.040 |
0.20/0.35 |
0.40/0.70 |
0.40/0.60 |
0.15/0.25 |
| 8645 |
0.43/0.48 |
0.75/1.00 |
0.035 |
0.040 |
0.20/0.35 |
0.40/0.70 |
0.40/0.60 |
0.15/0.25 |
| 8655 |
0.51/0.59 |
0.75/1.00 |
0.035 |
0.040 |
0.20/0.35 |
0.40/0.70 |
0.40/0.60 |
0.15/0.25 |
| 8720 |
0.18/0.23 |
0.70/0.90 |
0.035 |
0.040 |
0.20/0.35 |
0.40/0.70 |
0.40/0.60 |
0.20/0.30 |
| 8740 |
0.38/0.43 |
0.75/1.00 |
0.035 |
0.040 |
0.20/0.35 |
0.40/0.70 |
0.40/0.60 |
0.20/0.30 |
| 8822 |
0.20/0.25 |
0.75/1.00 |
0.035 |
0.040 |
0.20/0.35 |
0.40/0.70 |
0.40/0.60 |
0.30/0.40 |
| 9254 |
0.51/0.59 |
0.60/0.80 |
0.035 |
0.040 |
1.20/1.60 |
0.60/0.80 |
--- |
--- |
| 9255 |
0.51/0.59 |
0.70/0.95 |
0.035 |
0.040 |
1.80/2.20 |
--- |
--- |
--- |
| 9260 |
0.56/0.64 |
0.75/1.00 |
0.035 |
0.040 |
1.80/2.20 |
--- |
--- |
--- |
Mechanical Properties of Alloy Steel Pipe Fittings
| Gr. |
Tensile Strength, min. ksi[MPa] |
Yield Strength, min. ksi[MPa] |
Elongation, min. % |
| Longitudinal |
Transverse |
| WP1 |
55-80[380-550] |
30[205] |
20 |
13 |
| WP12 CL1 |
60[415] |
32[220] |
22 |
14 |
| WP12 CL2 |
70[485] |
40[275] |
22 |
14 |
| WP11 CL1 |
60[415] |
30[205] |
22 |
14 |
| WP11 CL2 |
70[485] |
40[275] |
22 |
14 |
| WP11 CL3 |
75[520] |
45[310] |
22 |
14 |
| WP22 CL1 |
60[415] |
30[205] |
22 |
14 |
| WP22 CL3 |
75[520] |
45[310] |
22 |
14 |
| WP24 |
85[585] |
60[415] |
20 |
- |
| WP5 CL1 |
60[415] |
30[205] |
22 |
14 |
| WP5 CL3 |
75[520] |
45[310] |
22 |
14 |
| WP9 CL1 |
60[415] |
30[205] |
22 |
14 |
| WP9 CL3 |
75[520] |
45[310] |
22 |
14 |
| WPR |
63-99[435-605] |
46[315] |
20 |
- |
| WP91 |
90[620] |
60[415] |
20 |
13 |
| WP911 |
90-120[620-840] |
64[440] |
20 |
13 |
| WP92 |
90-120[620-840] |
64[440] |
20 |
13 |
Equivalent Standard of Alloy Steel Pipe Fittings
| Material Group |
Common Name |
Type |
UNS |
Forging Spec. |
Casting Spec. Equivalent |
DIN |
DIN W. No |
Application |
| Low AS |
Moly Steel |
C-1/2Mo |
K12822 |
A182-F1 cl2 |
A217-WC1 |
15M03 |
1.5415 |
Up to 470ºC* (875ºF) |
| AS Chrome Moly |
1.1/4Cr-1/2Mo |
K11572 |
A182-F11 cl2 |
A217-WC6 |
13CRM044 |
1.7335 |
Up to 593ºC (1100ºF) |
| 2.1/4Cr-1Mo |
K21590 |
A182-F22 cl3 |
A217-WC9 |
10CRM0910 |
1.7380 |
Up to 593ºC (1100ºF), HP steam |
| 5Cr-1/2Mo |
K41545 |
A182-F5/F5a |
A217-C5 |
12CRMO195 |
1.7362 |
High temp refinery service |
| 9Cr-1Mo |
K90941 |
A182-F9 |
A217-C12 |
X 12 CrMo 9 1 |
1.7386 |
High temp erosive refinery service |
| 9Cr-1Mo-V |
|
A182-F91 |
A217-C12A |
X 10 CrMoVNb 9 1 |
1.4903 |
High pressure steam |
Basic Type of Alloy Steel Pipe Fittings
Low Alloy Steel Pipe Fittings Stockist
Chrome Moly Alloy Steel Weld Fittings
Alloy Steel Buttweld Fittings
Alloy Steel Elbow Fittings
ASTM A234 Alloy Steel Pipe Fittings
