Titanium Pipe Fittings

Titanium Pipe Fittings, Titanium Pipe Fittings Manufacturers, Titanium Pipe Fittings Suppliers, Titanium Pipe Fittings Stockists, Titanium Pipe Fittings Exporters

Titanium Pipe Fittings Manufacturers In India, Titanium Pipe Fittings Suppliers In India, Titanium Pipe Fittings Stockists In India, Titanium Pipe Fittings Exporters In India

Titanium Grade 2 Pipe Fittings

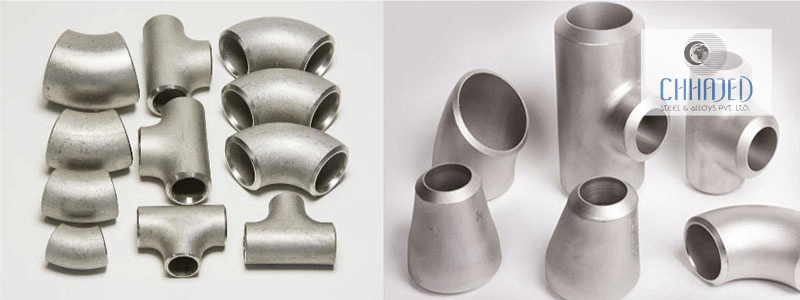

Titanium Pipe Fittings

Titanium Pipe Fittings Manufacturers in Mumbai, Titanium Pipe Fittings Suppliers in Mumbai, Titanium Pipe Fittings Stockists in Mumbai, Titanium Pipe Fittings Exporters in Mumbai

Titanium Pipe Fittings its most useful properties are its high tensile strength to density ratio. They are also known for their high strength, low weight, and exceptional corrosion resistance. It is also formidable in its resistance to corrosion by both water and chemical media. Titanium buttweld fittings is non-magnetic and biocompatible which has led to its increasing use in the medical field. It is a weldable pipe fitting that allows for change of direction of flow, to branch off which helps to reduce the pipe size or to attach supplementary equipment. Titanium compression fittings will be made of one or more compatible materials which will suitable for the connection, it is a fitting which is used in electrical channel or plumbing system to join thin walled pipes or two tubes together. For example where two pipes made of dissimilar materials are to be joined.

Titanium tube fittings is well known for its high resistance to corrosion. They have high boiling and melting points due to its metallic properties. Its systems are typically configured with straight sections connected by fittings or specially formed connections and joints. Titanium tube fittings connects runs of tubing to other tubing sections, pipe, hose, or other components. Due to its very unique property makes titanium the metal of choice for numerous applications where corrosion is a potential problem. It has a low modulus of elasticity.

All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!

Specification Schedule of Titanium Pipe Fittings

ASME SB363 Titanium Fittings Specifications ASTM B366
Titanium UNS R50400 Pipe fittings Types
  • UNS R50250 Titanium Welded Fittings
  • Titanium Buttweld DIN 3.7035 Fabricated Pipe Fittings
  • Titanium Gr. 2 Bevel Ends Pipe Fittings
  • Titanium Gr. 2 Buttweld Fitting
  • ASTM B363 Titanium Seamless Fittings
  • ASME SB363 Titanium ERW Fittings
Titanium Gr. 1 FittingsType DN15-DN1200
Titanium ASTM B363 Buttweld Fitting Connection Welding
UNS R50250 Titanium Pipe Fittings size Titanium UNS R50400 Seamless Butt Weld Fittings: 1/2" – 10"
Titanium Gr. 2 Welded Butt Weld Fittings: 1/2" – 48"
ASTM B363 Titanium Gr. 2 Elbows Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D .
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Titanium UNS R50400 Fittings Manufacturing process Push, Press, Forge, Cast, etc.
Titanium Gr. 1 Buttweld Pipe Fittings Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Titanium DIN 3.7065 Pipe Fittings Origin & Mills Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries for ASTM B363 Titanium Gr. 2 Pipe Fittings
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Application & uses of Industrial Titanium B363 Fittings
  • Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc
  • Schedule 10 fittings are an economical alternative for lower-pressure applications.
  • Schedule 40 fittings have a thicker wall for higher-pressure applications.
Titanium Grade 2 Pipe Fittings Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
WNR 3.7165 Titanium Fittings Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Titanium Alloy Buttweld Fitting Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Titanium Gr. 5 Pipe Fittings
Ti. Alloy Pipe Elbow Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) Titanium UNS N56400 Buttweld Fittings
Specialized Titanium Pipe Fittings Manufacturers In India ASTM B363 Titanium Gr. 5 90º Elbows, 45º Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend
We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Chemical Properties of Titanium Pipe Fittings

Grade Ti C Fe H N O Al V
Ti Grade2 99.2 min 0.1 max 0.3 max 0.015 max 0.03 max 0.25 max
Ti Grade5 90 min 0.25 max 0.2 max 6 min 4 min

Mechanical Properties of Titanium Pipe Fittings

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Titanium Gr. 2 4.5 g/cm3 1665 °C (3030 °F) Psi – 49900 , MPa – 344 Psi – 39900 , MPa – 275 20 %
Titanium Gr. 5 4.43 g/cm3 1632 °C (2970 °F) Psi – 138000 , MPa – 950 Psi – 128000 , MPa – 880 14 %

Equivalent Standard of Titanium Pipe Fittings

Titanium Gr. 2 3.7035 R50400
Titanium Gr. 5 3.7165 N56400

Basic Type of Titanium Pipe Fittings

Titanium Pipe Fittings

Titanium Gr 2 Pipe Fittings

Titanium Flat Bar

Titanium Grade 5 Pipe Fittings

Titanium Pipe Fittings

Titanium NPT Pipe Fittings

Titanium Pipe Fittings

Titanium Gr 2 Buttweld Fittings

Titanium Pipe Fittings

Titanium WPT5 Pipe Fittings

Titanium Pipe Fittings

ASTM SB 363 Titanium WPT5 Pipe Fittings
