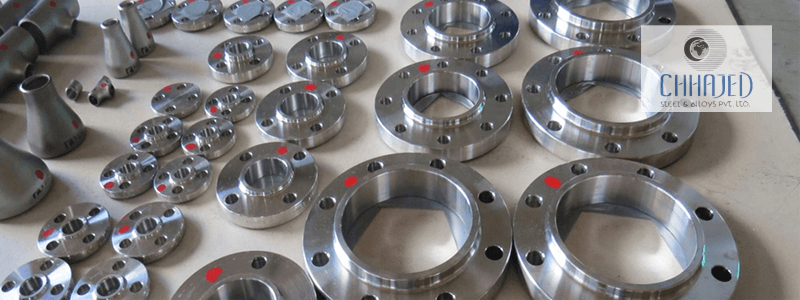

Hastelloy Flanges
Hastelloy Flanges Manufacturers in Mumbai, Hastelloy Flanges Suppliers in Mumbai, Hastelloy Flanges Stockists in Mumbai, Hastelloy Flanges Exporters in Mumbai
Hastelloy C276 Flanges are is placed between two open flanges, which stop the flow through a pipe. Many times. They are suitable to use in various applications such as pollution control, chemical processing, waste treatment plants, and pulp and paper production. ASTM B564 UNS N10276 Blind Flange is usually used in pipe engineering, petrochemical, public services and water works. They is a solid disk used to block off a pipeline or to create a stop. It is used while adding another line onto an existing pipeline or when a new valve is being added.
Alloy C276 Weld Neck Flanges are resistant to the formation of grain boundary precipitates in the weld heat-affected zone, thus in an as welded condition it suitable for most chemical process applications. UNS N10276 Slip on Flanges has a raised face and is manufactured to slip over the outside of pipe, long-tangent elbows, swages and reducers. They have excellent resistance to pitting, stress-corrosion cracking and oxidizing atmospheres up to 1900°F. It is ideal for low pressure applications since the strength when under internal pressure is about one third that of a weld neck flange. It provides poor resistance to vibration and shock and compared to weld neck flange it is easier to align. It is ideal for low pressure applications since the strength when under internal pressure is about one third that of a weld neck flange.
ASTM B564 Hastelloy C276 Weld Neck Flanges is joined by welding the pipe to the flange neck. It moves stress from the flange to the pipe rather. They are resistant to wet chloride gas, hypochlorite and chlorine dioxide solutions. It is frequently used for applications where high pressure is a factor, and reduces the stress concentration from the base of the hub. Hastelloy C276 Forged Flanges is used as a connection component for pipes, pumps, valves, and other equipment to form a pipework system. They have exceptional resistance to strong solutions of oxidizing salts, such as ferric and cupric chlorides.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of Hastelloy Flanges
| Standard Specifications |
ASTM B564 / ASME SB 564 UNS N10276 |
| Relevant Grades |
Hastelloy C22/ B2 Flanges |
| Standard |
- BS (British Standard)
- EN (European)
- DIN
- B16.47 Series A & B
- EN-1092-1
- B16.36
- BS4504
- B16.48
- BS 10
- MSS S44
- GOST Flange
- BS1560-3.1
- ISO 70051
- ASA/ ANSI/ ASME B16.5
- API 7S-43
- API 7S-15
- JIS B2220
- API 605
|
| Sizes we produce |
- 1/2" to 48"
- 15 - 1200NB
- DN10~DN5000 or special sizes
|
| Facing styles |
Groove, Lap-Joint Face (LJF), Raised Face (RF), Flat Face (FF), Large Male-Female (LMF), Ring Type Joint (RTJ), Small Tongue, Small Male-Female (SMF), Large Tongue & Groove |
| Pressure Rating ANSI |
Class 150, 300, 600, 900, 1500, 2500 |
| Pressure Calculation in DIN |
6Bar 10, 16, 25, 40 and PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS |
5K, 10, 16 20, 30, 40, 63 |
| UNI |
6Bar, 10, 16, 25, 40 |
| EN |
6Bar, 10, 16, 25, 40 |
| Most common manufacturing types |
Threaded, Screwed, Forged, Plate |
| Production technique |
- Forged, heat treatment process and machined
|
| Special design |
|
| Testing & Quality Approval |
- EN 10204/3.1B
- Raw Materials Certificate
- 100% Radiography Test Report
- Third Party Inspection Report, etc
|
| We produce |
- German (DIN)
- American standard (ANSI)
- AS 2129 Table H/ D/ E
- B.S: BS10, BS3293, BS4504, BS1560,
- ASA/ ANSI / ASME B16.5, B16.47 Series A & B, API605, MSS SP44, B16.36, B16.48, AWWA
- British standard (BS)
- DIN: 2634, 2631, 2633, 2637, 2641, 2655, 2642, 2527, 2632, 2628, 2656, 2573, 2635, 2638, 2629, 2576, 2627, 2566, 2636
- The other standard: C207; B2220; SABS1123; KS AWWA UNI2276 NFE29203; B1503, JIS GOST12820, EN1092-1,
|
Chemical Properties of Hastelloy Flanges
| Element |
% |
| Carbon |
0.02max |
| Phosphorus |
0.03max |
| Molybdenum |
15.0-17.0 |
| Chromium |
14.5-16.5 |
| Sulfur |
0.03max |
| Manganese |
1.00max |
| Silicon |
0.08max |
| Vanadium |
0.35max |
| Tungsten |
3.0-4.5 |
| Cobalt |
2.50max |
| Iron |
4.0-7.0 |
| Nickel |
Remainder |
Mechanical Properties of Hastelloy Flanges
|
0.2% Offset Yield Strength |
Ultimate Tensile Strength |
Elongation in 2 in |
Hardness |
|
41,000(psi), 283(Mpa)
|
100,000(psi), 690(Mpa)
|
40%
|
100 Rockwell B(max)
|
Equivalent Standard of Hastelloy Flanges
| |
Europe |
America |
Japan |
Russia |
Europe |
Russia |
| STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
GOST |
EN |
OR |
| Alloy C276 Flanges |
2.4819 |
N10276 |
NW 0276 |
ХН65МВУ |
NiMo16Cr15W |
ЭП760 |
Basic Type of Hastelloy Flanges
ASTM B564 Hastelloy C276 Flanges
AISI Hastelloy C276 Flanges
ANSI Hastelloy C276 RTJ Flanges
ASME B16.5 Hastelloy Flanges
Hastelloy C276 Header Flanges
ANSI B16.5 Hastelloy Forged Pipe Flanges
DN15 Hastelloy C276 Flat Welding Flange
ASME B16.5 Hastelloy Threaded Flanges
Hastelloy C276 KF Blank Flanges
Hastelloy C276 Pipe Flanges
Hastelloy C276 Threaded Flanges
Hastelloy C276 Blind Flanges
