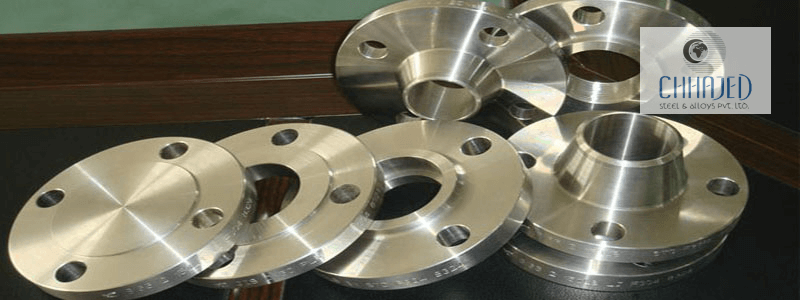

Alloy Steel Flanges
Alloy Steel Flanges Manufacturers in Mumbai, Alloy Steel Flanges Suppliers in Mumbai, Alloy Steel Flanges Stockists in Mumbai, Alloy Steel Flanges Exporters in Mumbai
Alloy Steel Flange Material has chemical composition, such as nickel, nickel-chromium, molybdenum, chromium-molybdenum steels, and can differ according to its chemical composition. Low Alloy Steel Flanges are widely used for automotive and aerospace bodies, offshore and onshore structural engineering plates and railway lines. Alloy Steel Threaded Flanges is known as screwed flange and it has a thread inside the flange bore which fits on the pipe with matching male thread on the pipe. And they are widely demanded as pipe flanges i.e called as threaded flanges which is useful in different industrial applications. Chrome moly flanges provide improved levels of molybdenum and chromium.
Alloy Steel Plate Flanges are used to seal the end of pipelines, valves or other connection. With high tensile strength it is available with a raised face and backups for easy installation. ASTM A182 Alloy Steel Blind Flanges has mounting holes around the perimeter and the gasket sealing rings are machined into the mating surface. They have a solid disk used to block off a pipeline or to create a stop. It can be placed in between two open flanges, which stops the flow through a pipe. It does not have any openings for fluids to pass through.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of Alloy Steel Flanges
| ASTM Specification |
ASTM A182 , ASME SA182 |
| Size in inch |
1/2 inch (15 NB) to 48 inch (1200NB) |
Standards
|
ANSI/ASME B16.5, B16.48, B 16.47 Series A & B, EN-1092, BS4504, BS 10, DIN |
| Class and Pressure Chart |
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
Chemical Properties of Alloy Steel Flanges
| Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
| F1 |
0.15 max |
0.3-0.6 |
0.5 |
0.03 |
0.03 |
4-6 |
0.44-0.65 |
| F5 |
0.15 max |
0.3-0.6 |
0.5-1.0 |
0.03 |
0.03 |
4-6 |
0.44-0.65 |
| F9 |
0.15 max |
0.3-0.6 |
0.5-1.0 |
0.03 |
0.03 |
8-10 |
0.9-1.1 |
| F11 |
0.5-0.15 |
0.3-0.6 |
0.5-1.0 |
0.03 |
0.03 |
1.0-1.5 |
0.44-0.65 |
| F12 |
0.15 max |
0.3-0.6 |
0.5 |
0.03 |
0.03 |
4-6 |
0.44-0.65 |
| F22 |
0.50.15 max |
0.3-0.6 |
0.5 |
0.03 |
0.03 |
4-6 |
0.44-0.65 |
| F91 |
0.15 max |
0.3-0.6 |
0.5-1.0 |
0.03 |
0.03 |
8-10 |
0.9-1.1 |
Mechanical Properties of Alloy Steel Flanges
| Grade |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| F1 |
275 |
485 |
20 % |
| F5 |
275 |
485 |
20 % |
| F9 |
380 |
585 |
20 % |
| F11 |
205 |
415 |
20 % |
| F12 |
275 |
485 |
20 % |
| F22 |
205 |
415 |
20 % |
| F91 |
380 |
585 |
20 % |
Equivalent Standard of Alloy Steel Flanges
| Material Group |
Common Name |
Type |
UNS |
Forging Spec. |
Casting Spec. Equivalent |
DIN |
DIN W. No |
Application |
| Low AS |
Moly Steel |
C-1/2Mo |
K12822 |
A182-F1 cl2 |
A217-WC1 |
15M03 |
1.5415 |
Up to 470ºC* (875ºF) |
| AS Chrome Moly |
1.1/4Cr-1/2Mo |
K11572 |
A182-F11 cl2 |
A217-WC6 |
13CRM044 |
1.7335 |
Up to 593ºC (1100ºF) |
| 2.1/4Cr-1Mo |
K21590 |
A182-F22 cl3 |
A217-WC9 |
10CRM0910 |
1.7380 |
Up to 593ºC (1100ºF), HP steam |
| 5Cr-1/2Mo |
K41545 |
A182-F5/F5a |
A217-C5 |
12CRMO195 |
1.7362 |
High temp refinery service |
| 9Cr-1Mo |
K90941 |
A182-F9 |
A217-C12 |
X 12 CrMo 9 1 |
1.7386 |
High temp erosive refinery service |
| 9Cr-1Mo-V |
|
A182-F91 |
A217-C12A |
X 10 CrMoVNb 9 1 |
1.4903 |
High pressure steam |
Basic Type of Alloy Steel Flanges
Low Alloy Steel Flanges Stockist
Chrome Moly Alloy Steel Flanges
Alloy Steel Threaded Flanges
Alloy Steel Blind Flanges
Alloy Steel Plate Flanges
Alloy Steel Forged Flanges
