TP316 Seamless U Tube and SS 304 U Bend Tubing Supplier in Mumbai
Stainless Steel Tubes Manufacturers in Mumbai, Stainless Steel Tubes Suppliers in Mumbai, Stainless Steel Tubes Stockists in Mumbai, Stainless Steel Tubes Exporters in Mumbai
Chhajed Steel & Alloy Pvt Ltd is Stainless Steel Heat Exchanger Tubes manufacturer in India. We produce Stainless Steel Heat Exchanger Tubes that are designed as per the standard of national and international. Stainless Steel Heat Exchanger Tube is devices that transfer energy in the form of heat, from one working fluid to the next, whether in solid, liquid or gas form. It is essential for power generation, refrigeration. All heat exchanger tubes are built on the same principle i.e that a hot fluid flowing around a colder fluid will transfer its heat in the direction of cold flow.

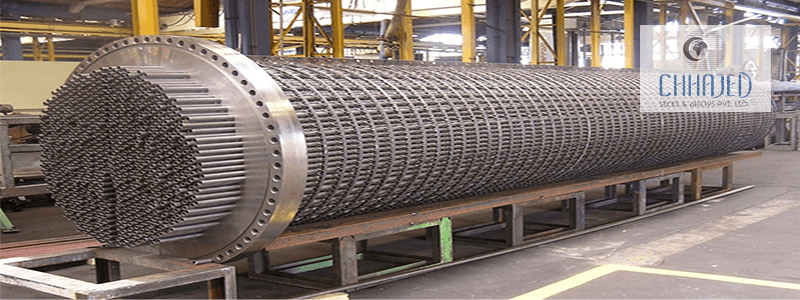

Stainless Steel Heat Exchanger Tube is most commonly used for heat exchanger in large chemical processesand other oil refineries, and it is well suited for higher-pressure applications. It made up of a shell with a bundle of tubes inside it. One fluid runs through the tubes, and another fluid flows over the tubes in order to transfer heat between the two fluids. Stainless Steel Tube Coil Heat Exchanger is the most efficient due to turbulent flow on both sides. It is most efficient due to turbulent flow on both the sides.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of Stainless Steel Tubes
| Stainless Steel Fin Tube Heat Exchanger Size |
6.35 Mm OD to 273 Mm OD |
| Stainless Steel Heat Exchanger Tube Outside Diameter |
9.52 mm O.D to 50.80 mm O.D |
| Stainless Steel Heat Exchanger Pipe Thickness |
0.7 mm to 3.68 mm |
| Stainless Steel Heat Exchanger Tube Length |
As per Customer requirement, Maximum upto 22 Meter Long. |
| Stainless Steel 316 Tube Heat Exchanger Standards |
ASTM A213, ASME SA213 |
| Type |
Seamless Tubes, Welded Tubes |
| Stainless Steel Grades |
TP 304 Heat Exchanger Tube, TP 304L Heat Exchanger Tube, TP 304H, TP 316 Tube, TP 316L Tube, TP 316H, TP 316Ti Tube, TP 317L Tube, TP 321 Tube, TP 321H Tube, TP 347 Tube, TP 347H Tube, TP 202 Tube, JT 7 Tube, J4 1 Tube, TP 409 Tube, TP 409L
Tube, TP 410 Tube, TP 430Ti Tube, TP 439 Heat Exchanger Tube Manufacturer and Supplier |
| Finishing |
It can be supplied in mechanical polished with various grits like at 80, 120, 240, 320, 400, 600 grits and mirror polished. |
Chemical Properties of Stainless Steel Tubes
| Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
Ti |
Fe |
| T304 |
minimum |
|
|
|
|
|
18.0 |
|
8.0 |
|
|
|
| maximum. |
0.08 |
2.0 |
0.75 |
0.045 |
0.030 |
20.0 |
10.5 |
0.10 |
|
|
| T304L |
minimum |
|
|
|
|
|
18.0 |
|
8.0 |
|
|
|
| maximum. |
0.030 |
2.0 |
0.75 |
0.045 |
0.030 |
20.0 |
12.0 |
0.10 |
|
|
| T304H |
minimum |
0.04 |
|
|
|
|
18.0 |
|
8.0 |
|
|
|
| maximum |
0.010 |
2.0 |
0.75 |
0.045 |
0.030 |
20.0 |
10.5 |
|
|
|
| SS T310 |
|
0.015 maximum |
2 maximum |
0.015 maximum |
0.020 maximum |
0.015 maximum |
24.00 26.00 |
0.10 maximum |
19.00 21.00 |
54.7 min |
|
|
| SS T310S |
|
0.08 maximum |
2 maximum |
1.00 maximum |
0.045 maximum |
0.030 maximum |
24.00 26.00 |
0.75 maximum |
19.00 21.00 |
53.095 min |
|
|
| SS T310H |
|
0.04 0.10 |
2 maximum |
1.00 maximum |
0.045 maximum |
0.030 maximum |
24.00 26.00 |
|
19.00 21.00 |
53.885 min |
|
|
| T316 |
minimum |
|
|
|
|
|
16.0 |
2.03.0 |
10.0 |
|
|
|
| maximum. |
0.035 |
2.0 |
0.75 |
0.045 |
0.030 |
18.0 |
14.0 |
|
|
|
| T316L |
minimum |
|
|
|
|
|
16.0 |
2.03.0 |
10.0 |
|
|
|
| maximum. |
0.035 |
2.0 |
0.75 |
0.045 |
0.030 |
18.0 |
14.0 |
|
|
|
| T316TI |
|
0.08 maximum |
10.00 14.00 |
2.0 maximum |
0.045 maximum |
0.030 maximum |
16.00 18.00 |
0.75 maximum |
2.00 3.00 |
|
|
|
| T317 |
|
0.08 maximum |
2 maximum |
1 maximum |
0.045 maximum |
0.030 maximum |
18.00 20.00 |
3.00 4.00 |
|
|
|
57.845 min |
| SS T317L |
|
0.035 maximum |
2.0 maximum |
1.0 maximum |
0.045 maximum |
0.030 maximum |
18.00 20.00 |
3.00 4.00 |
11.00 15.00 |
|
|
57.89 min |
| SS T321 |
|
0.08 maximum |
2.0 maximum |
1.0 maximum |
0.045 maximum |
0.030 maximum |
17.00 19.00 |
|
9.00 12.00 |
0.10 maximum |
5(C+N) 0.70 maximum |
|
| SS T321H |
|
0.04 0.10 |
2.0 maximum |
1.0 maximum |
0.045 maximum |
0.030 maximum |
17.00 19.00 |
|
9.00 12.00 |
0.10 maximum |
4(C+N) 0.70 maximum |
|
| T347/ T347H |
|
0.08 maximum |
2.0 maximum |
1.0 maximum |
0.045 maximum |
0.030 maximum |
17.00 20.00 |
|
9.0013.00 |
|
|
|
| T410 |
minimum |
|
|
|
|
|
11.5 |
|
|
|
|
|
| maximum |
0.15 |
1.0 |
1.00 |
0.040 |
0.030 |
13.5 |
|
0.75 |
|
|
|
| T446 |
minimum |
|
|
|
|
|
23.0 |
|
|
0.10 |
|
|
| maximum |
0.2 |
1.5 |
0.75 |
0.040 |
0.030 |
30.0 |
|
0.50 |
0.25 |
|
|
| T904L |
minimum |
|
|
|
|
|
19.0 |
4.00 |
23.00 |
0.10 |
|
|
| maximum |
0.20 |
2.00 |
1.00 |
0.045 |
0.035 |
23.0 |
5.00 |
28.00 |
0.25 |
|
|
Mechanical Properties of Stainless Steel Tubes
| Grade |
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| T304/ T304L |
8.0 g/cm3 |
1400 °C (2550 °F) |
Psi 75000 , MPa 515 |
Psi 30000 , MPa 205 |
35 % |
| T304H |
8.0 g/cm3 |
1400 °C (2550 °F) |
Psi 75000 , MPa 515 |
Psi 30000 , MPa 205 |
40 % |
| T310 / T310S / T310H |
7.9 g/cm3 |
1402 °C (2555 °F) |
Psi 75000 , MPa 515 |
Psi 30000 , MPa 205 |
40 % |
| 306/ 316H |
8.0 g/cm3 |
1400 °C (2550 °F) |
Psi 75000 , MPa 515 |
Psi 30000 , MPa 205 |
35 % |
| T316L |
8.0 g/cm3 |
1399 °C (2550 °F) |
Psi 75000 , MPa 515 |
Psi 30000 , MPa 205 |
35 % |
| T317 |
7.9 g/cm3 |
1400 °C (2550 °F) |
Psi 75000 , MPa 515 |
Psi 30000 , MPa 205 |
35 % |
| T321 |
8.0 g/cm3 |
1457 °C (2650 °F) |
Psi 75000 , MPa 515 |
Psi 30000 , MPa 205 |
35 % |
| T347 |
8.0 g/cm3 |
1454 °C (2650 °F) |
Psi 75000 , MPa 515 |
Psi 30000 , MPa 205 |
35 % |
| T904L |
7.95 g/cm3 |
1350 °C (2460 °F) |
Psi 71000 , MPa 490 |
Psi 32000 , MPa 220 |
35 % |
Equivalent Standard of Stainless Steel Tubes
| Stainless Steel Type |
ASTM |
Equivalent Standard |
| UNS |
Grads (TP) |
EN / Din |
Afnor (NF) |
JIS |
| Austenitic |
S30400 |
304 |
1.4301 |
Z 6 CN 18.09 |
SUS 304 |
| |
S30403 |
304L |
1.4306 |
Z 2 CN 18.10 |
SUS 304L |
| |
S31600 |
316 |
1.4401 |
Z 6 CND 17.11 |
SUS 316 |
| |
S31603 |
316L |
1.4404 |
Z 2 CND 17.12 |
SUS 316L |
| |
S31635 |
316Ti |
1.4571 |
Z 2 CND 17.12 |
- |
| |
S32100 |
321 |
1.4541 |
Z 6 CNT 18.10 |
SUS 321 |
| |
S34700 |
347 |
1.455 |
Z 6 CNNb 18.10 |
SUS 347 |
| |
S30409 |
304H |
1.4948 |
Z 6 CN 19.10 |
SUS 304H |
| |
S31609 |
316H |
1.4919 |
Z 10 CND 18.10 |
SUS 316H |
| |
S32109 |
321H |
1.4941 |
Z 10 CND 18.10 |
SUS 321H |
| Ferritic |
S40500 |
405 |
1.4002 |
Z 6 CAL 13 |
SUS 405 |
| |
S41000 |
410 |
1.4002 |
Z 12 C 13 |
SUS 410 |
| |
S43000 |
430 |
1.4016 |
Z 10 C 17 |
SUS 430 |
| Duplex |
S31803 |
- |
1.4462 |
Z 2 CND 22.06 |
- |
| |
S32750 |
2507 |
1.4410 |
Z 5 CND 20.12 |
- |
| |
S32760 |
- |
1.4501 |
- |
- |
Basic Type of Stainless Steel Tubes
Stainless Steel Heat Exchanger Tubes
Stainless Steel Superheater Tube
Stainless Steel Tube Coil Heat Exchanger
SS Fin Tube Heat Exchanger
316 Stainless Steel Heat Exchanger tube
