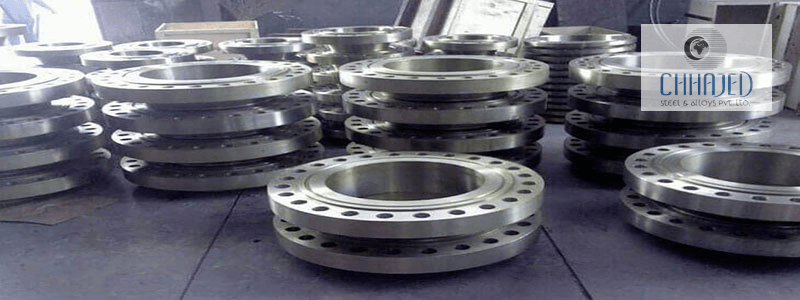

Alloy Steel Grade F5 Flanges
Alloy Steel Grade F5 Flanges Manufacturers in Mumbai, Alloy Steel Grade F5 Flanges Suppliers in Mumbai, Alloy Steel Grade F5 Flanges Stockists in Mumbai, Alloy Steel Grade F5 Flanges Exporters in Mumbai
A182 F5 Cl2 Alloy Steel Flanges are well suited to not only high temperature but also high pressure or a combination of both these applications. ASTM A182 Gr F5 Blind Flanges are commonly used in petrochemical, pipe engineering, public services and water works. A182 Gr F5 Threaded Flanges are the greatest advantage is that it can be assembled without welding, explaining its use in low pressure services at ordinary atmospheric temperatures, and in highly explosive areas where welding create a hazard. They are mostly used in utility services such as air and water. It is similar to the Slip-On flange, but the bore is threaded.
SA 182 Gr F5 Socket Weld Flanges are attached by inserting the pipe into the socket end and applying fillet weld around the top, this let for a better flow and smooth bore of the fluid or gas inside of the pipe. F5 steel Flanges can also be easily welded, and is known to be extremely ductile, durable and tough. A182 f5 Forged Flanges have several uses include connecting sheets, pumps, pipes and structures which explicitly need an intermediate connection point. SA182 F5 Plate Flange can also be used in non-corrosive applications as well as in erosive applications at the temperature between ranging between -30ºC up to +650ºC. They can be used in those environments where there is a presence of mild corrosive compounds.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of Alloy Steel Grade F5 Flanges
| ASTM Specification |
ASTM A182 , ASME SA182 |
| Size in inch |
1/2 inch (15 NB) to 48 inch (1200NB) |
Standards
|
ANSI/ASME B16.5, B16.48, B 16.47 Series A & B, EN-1092, BS4504, BS 10, DIN |
| Class and Pressure Chart |
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
Chemical Properties of Alloy Steel Grade F5 Flanges
| Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
| F5 |
0.15 max |
0.3-0.6 |
0.5-1.0 |
0.03 |
0.03 |
4-6 |
0.44-0.65 |
Mechanical Properties of Alloy Steel Grade F5 Flanges
| Grade |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| F5 |
275 |
485 |
20 % |
Equivalent Standard of Alloy Steel Grade F5 Flanges
| STANDARD |
UNS |
DIN WERKSTOFF NR. |
DIN |
| Alloy F5 |
K41545 |
1.7362 |
12CRMO195 |
Basic Type of Alloy Steel Grade F5 Flanges
Low Alloy Steel Grade F5 Flanges Stockist
Chrome Moly Alloy Steel Grade F5 Flanges
Alloy Steel Grade F5 Threaded Flanges
Alloy Steel Grade F5 Blind Flanges
Alloy Steel Grade F5 Plate Flanges
Alloy Steel Grade F5 Forged Flanges
