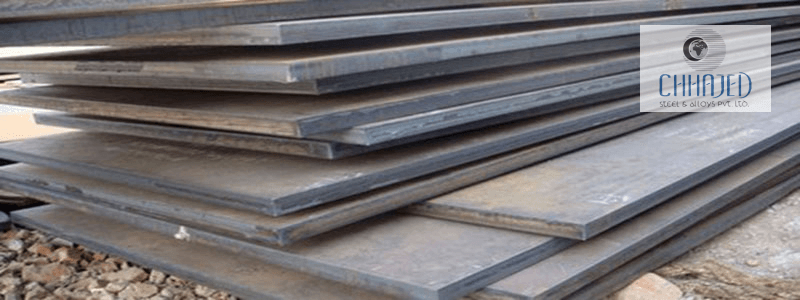

Boiler & Pressure Vessel Steel Sheets & Plates
Boiler & Pressure Vessel Steel Manufacturers in Mumbai, Boiler & Pressure Vessel Steel Suppliers in Mumbai, Boiler & Pressure Vessel Steel Stockists in Mumbai, Boiler & Pressure Vessel Steel Exporters in Mumbai
BS 1501 224 are supplied in the normalized condition unless a choice is agreed between provider as well as buyer. These BS1501 reduced temperature level effect mechanical and chemical properties and material may likewise be supplied having actually defined raised temperature properties. BS 1501 151 ASTM currently known as P235GH, which is a European defined steel for use in stress vessels, boilers and also heat exchangers contains 18 to 20 % of chromium & 8 to 10 % of nickel. The structure of this steel makes it excellent for applications where raised functioning temperatures. They are the material as well as the standard is utilized by fabricators throughout the oil and gas, refinery and petrochemical sectors.
BS1501 Material is a stabilized carbon alloy steel and also is readily available ex-stock from our storage facility with mill accreditation and marking. This EN10028 BS 1501 161 430A/B Boiler Plate quality supersedes the older BS/ British Standard and DIN criteria (Qualities BS 1501-161-360A and also DIN H 1, specifically). The main features of these plates that are of boiler quality, which are in high demand by various industries. As an established Boiler BS1501 plate distributors, we procure tested material from approved mills and supply a wide range of shapes, sizes and qualities from our stockyard located in Mumbai, India.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of Boiler & Pressure Vessel Steel Sheets & Plates
| Product Type |
BS 1501 British Standard for pressure vessel steel plate |
| Fully Killed Carbon Steel BS 1501 Plate Specification |
- BS 1501-151 grade 430: thicknesses up to 100mm
- BS 1501-161 grade 430: thicknesses up to 100mm
- BS 1501-224 grade 430: thicknesses up to 63mm
|
| Thickness |
0.1 to 100 mm Thk |
| Width |
10-2500mm |
| Length |
2m, 2.44m, 3m, or as required |
| Uses & application |
- Boilers
- Calorifiers
- Dished Ends
- Flanges
|
Chemical Properties of Boiler & Pressure Vessel Steel Sheets & Plates
|
Type
|
C
|
Mn
|
Si
|
P
|
S
|
Al1
|
Cr2
|
Cu2, 4
|
Mo2
|
Ni2
|
N2
|
CE3
|
|
|
max
|
|
|
max
|
max
|
min
|
max
|
max
|
max
|
max
|
max
|
max
|
| 151 grade 430 |
0,25
|
0,60 - 1,40
|
0,00 - 0,35
|
0,030
|
0,045
|
-
|
0,25
|
0,30
|
0,10
|
0,30
|
0,012
|
0,45
|
| 161 grade 430 |
0,25
|
0,60 - 1,40
|
0,10 - 0,35
|
0,030
|
0,030
|
-
|
0,25
|
0,30
|
0,10
|
0,30
|
0,012
|
0,41
|
| 224 grade 430 |
0,20
|
0,90 - 1,50
|
0,10 - 0,40
|
0,030
|
0,030
|
0,015
|
0,25
|
0,30
|
0,10
|
0,75
|
0,012
|
0,43
|
Mechanical Properties of Boiler & Pressure Vessel Steel Sheets & Plates
|
BS 1501: Part 1: 1980
|
Nominal thickness t
in mm
|
(MPa) Tensile strength
|
(MPa) Minimum yield strength
|
(%) Minimum Elongation1
|
| 151 grade 430 |
|
t ≤ 16
|
430 - 550
|
250
|
23
|
| |
16<
|
t ≤ 40
|
430 - 550
|
240
|
23
|
| |
40<
|
t ≤ 63
|
430 - 550
|
230
|
22
|
| |
63<
|
t ≤ 80
|
430 - 550
|
220
|
21
|
| 161 grade 430 |
|
t ≤ 16
|
430 - 550
|
250
|
23
|
| |
16<
|
t ≤ 40
|
430 - 550
|
240
|
23
|
| |
40<
|
t ≤ 63
|
430 - 550
|
230
|
22
|
| |
63<
|
t ≤ 80
|
430 - 550
|
220
|
21
|
| 224 grade 430 |
|
t ≤ 16
|
430 - 550
|
305
|
22
|
| |
16<
|
t ≤ 40
|
430 - 550
|
285
|
22
|
| |
40<
|
t ≤ 63
|
430 - 550
|
275
|
21
|
Equivalent Standard of Boiler & Pressure Vessel Steel Sheets & Plates
| Previous Standard Specification |
Previous Grade |
Current Standard Specification |
Current Grade |
| BS 1501 P1-151 |
360 A, B
400 A, B
430 A, B |
BS EN 10028-2 |
P 235 GH
P 265 GH
P 295 GH |
| BS 1501 P1-161 |
360 A, B
400 A, B
430 A, B |
BS EN 10028-2 |
P 235 GH
P 265 GH
P 295 GH |
| BS 1501 P1-164 |
360 A, B & RT... LT20
400 A, B & RT... LT20 |
BS EN 10028-2 |
P 235 GH
P 265 GH |
| BS 1501 P2 |
243 A, B
620 A, B
621 A, B
622-515 A, B
|
BS EN 10028-2 |
16 Mo 3
13 CrMo 4-5
13 CrMoSi 5-5
10 CrMo 9-10
|
| BS 1501 P2 |
503
510 |
BS EN 10028-4 |
12 Ni 14
X 8 Ni 9 +QT680 |
Basic Type of Boiler & Pressure Vessel Steel Sheets & Plates

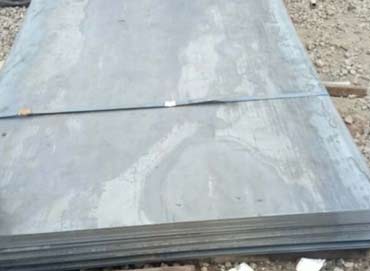

Boiler BS 1501 161 430 A/B Sheet
