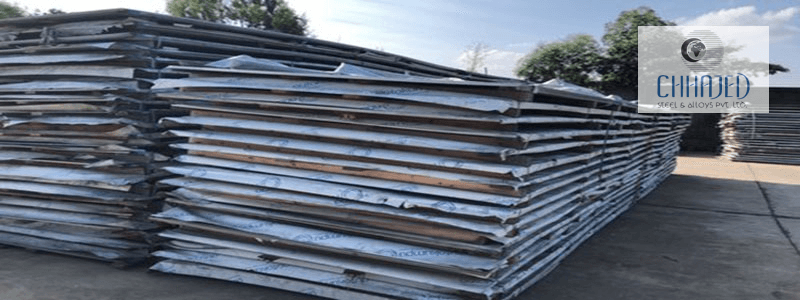

SMO 254 Sheets & Plates
SMO 254 Sheets & Plates Manufacturers in Mumbai, SMO 254 Sheets & Plates Suppliers in Mumbai, SMO 254 Sheets & Plates Stockists in Mumbai, SMO 254 Sheets & Plates Exporters in Mumbai
SMO 254 Steel Plate is a very high austenitic stainless steel grade. It has combination features of pitting and crevice corrosion with strength which is twice that of the 300 stainless steel series. It is known for possessing excellent workability as well. smo 254 plates for certain applications it has been reported to be a cost-effective substitute for high nickel and titanium alloys.
Other operations related to 1.4547 Plate such as forging, upsetting can be performed at 982 - 1149°C. It is recommended that temperatures should not exceed this range as it would result in reduction and scaling in the workability of the material. ASTM A240 UNS S31254 Sheet is used for applications such as food processing equipment, desalination, saltwater handling, chemical processing equipment, bleaching equipment for paper and pulp industry, etc.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of SMO 254 Sheets & Plates
| SMO 254 plate Specification |
ASTM A240 / ASME SA240 / NACE MR-0175 |
| Tolerances of width and thickness of uns s31254 plate |
- EN 10258 (formerly DIN 59381)
- EN 10151 SMO 254 En 1.4547 strips for springs
- EN 10088 6mo SMO 254 strip (general)
|
| Standard astm a240 uns s31254 Sheet sizes in stock |
1000 x 2000 mm, 1220 x 2440 mm, 1500 x 3000 mm, 2000 x 2000 mm, 2000 x 4000 mm
- Cold rolled SMO 254 plate 0.5-6.4 mm
- Hot rolled SMO 254 steel plate 3.0–10.0 mm
|
| Grade 1.4547 SMO 254 AISI Plate & Sheet Thickness |
0.1 to 100 mm Thk |
| Width |
10-2500mm |
| SMO 254 Super Duplex Plate & Sheet Length |
2m, 2.44m, 3m, or as required |
| smo 254 plates Finish |
2B, 2D, BA NO(8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled SMO 254 En 1.4547 Plate, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| ASTM A240 S31254 Aisi SMO 254 Plate & Sheet Hardness |
Soft, Hard, Half Hard, Quarter Hard, Spring Hard |
| Stock available in form of |
UNS S31254 Plate, Sheet, Coils, Foils, Strip, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate |
| Plasma profiles |
As per client's specification |
| Profiling |
To provide a full profiling service in UAE we use numerous profiling methods including:
- Laser Plate Cutting
- Plasma Plate Cutting
- Oxy-propane Flame Cutting
|
| Value added services for 1.4547 Plate |
- Cut-to-length
- Laser cutting
- Slitting
- Polishing
- Blanking
- Waterjet cutting
- Plasma cutting
- Edge preparation
- Welding
- Sawing and shearing
- Bending and mechanical processing
|
| Standards and approvals for 6mo Plate |
- EN ISO 18286
- EN 10051
- EN 10088-1
- ISO 15510
- EN ISO 9445
- ASTM A 480
- ASTM A 959
- ASME IID
|
| Why choose us? |
- Large stock of uns s31254 plate
- Mill Test Certificate is supplied with shipment.
- Any third party inspection is accepted.
- ASTM A240 Uns S31254 Sheet are tested to ASTM A923 Method "C" or ASTM G48 Method "A".
- Minimum Nitrogen content and Ferrite Count Test
|
Chemical Properties of SMO 254 Sheets & Plates
| Grade |
Ni |
Cr |
Mo |
Cu |
N |
C |
Mn |
Si |
P |
S |
| SMO 254 |
17.5-18.5 |
19.5-20.5 |
6-6.5 |
0.5-1.0 |
0.18-0.22 |
0.02 |
1.0 |
0.08 |
0.03 |
0.01 |
Mechanical Properties of SMO 254 Sheets & Plates
| Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| 8.0 g/cm3 |
1320-1390 ℃ |
650 |
300 |
35 % |
Equivalent Standard of SMO 254 Sheets & Plates
| STANDARD |
WERKSTOFF NR. |
UNS |
SIS |
AFNOR |
EN |
| SMO 254 |
1.4547 |
S31254 |
2378 |
Z1 CNDU 20.18.06Az |
X1CrNiMoCuN20-18-7 |
Basic Type of SMO 254 Sheets & Plates
UNS S31254 SMO 254 Plates
