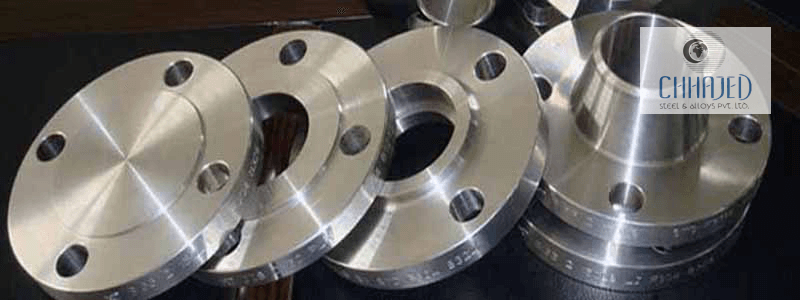

Stainless Steel F310 Flanges
Stainless Steel F310 Flanges Manufacturers in Mumbai, Stainless Steel F310 Flanges Suppliers in Mumbai, Stainless Steel F310 Flanges Stockists in Mumbai, Stainless Steel F310 Flanges Exporters in Mumbai
ASTM SA 182 F310 contains 25% chromium and 20% nickel which make it highly resistant to oxidation and corrosion, it is used in moderately carburizing atmospheres, as they come across in petrochemical environments. Its high chromium and medium nickel content makes it capable for applications in reducing sulphur atmospheres containing H2S. They are extensively used in moderately carburizing atmospheres, as it comes across in petrochemical environments.
Stainless Steel 310 Flanges is a forged or cast ring of steel which is designed to connect mechanically sections of pipe or join pipe to a pump, pressure vessel, valve or any other piece of instruments, they can be welded by matching electrodes and filler metals. Stainless Steel 310 Flanges is a cast ring of steel which is designed to connect mechanically sections of pipe or join pipe to a pump, pressure vessel, or any other piece of instruments. It can be welded by matching electrodes and filler metals.
ASTM A182 F310 is used in an application of food processing equipment, fluidised bed combustors, kilns, radiant tubes, lead pots, tube hangers for steam boilers and petroleum refining, internal components of coal gasifier, thermowells, burners and combustion chambers, refractory anchor bolts, retorts, muffles, annealing covers, cryogenic structures. Alloy 310 Flanges requires preheat and post warmth are not needed, however for consumption administration in fluids full post weld arrangement strengthening treatment is required. They have great oxidation opposition in irregular assistance in air up to 1035°C and 1050°C in persistent help and is an oxidation, sulphidation and carburization safe.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of Stainless Steel F310 Flanges
| Standard Specifications |
ASTM A182 / A240 & ASME SA182 / SA240 |
| Dimensions |
ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Standard |
- BS (British Standard)
- BS1560-3.1
- API 7S-15
- ASA/ANSI/ASME B16.5/16.36/16.47A/16.47B
- B16.47 Series A & B
- B16.48
- API 605
- BS4504
- BS 10
- DIN, EN (European)
- EN-1092
- GOST Flange
- MSS S44
- ISO 70051
- JIS B2220
- API 7S-43
- EN 1092
|
| Size / Range |
1/2 inch (15 NB) - 48 inch (1200NB) DN10~DN5000 or special sizes |
| Connect Type/ Flange Face Type |
Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove Manufacturer and Supplier |
| Pressure Rating ANSI |
Class 150, 300, 600, 900, 1500, 2500 |
| Pressure Calculation in DIN |
6Bar 10, 16, 25, 40 and PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS |
5K, 10, 16 20, 30, 40, 63 |
| UNI |
6Bar, 10, 16, 25, 40 |
| EN |
6Bar, 10, 16, 25, 40 |
| Most common types of |
Threaded, Screwed, Plate, Forged |
| Manufacturer Test Certificates |
EN 10204 3.1B
Third Party Inspection Report
100% Radiography Test Report
Raw Materials Certificate |
| Production technique |
- Forged, Heat treated and machined
|
| Special design |
As per your drawing
AS, ANSI, BS, DIN and JIS
15 NB (1/2 In) - 200 NB (8 In)
Equal and Reducing Configurations |
| Origin |
Indian, West Europe, Korean USA, Japan, |
| Uses & application |
- Power generation
- Oil refinery industry
- Petrochemical
- Petrochemical industry
|
| Pipe Marking |
All SS 304 Flanges are marked as follows: Supplier or Manufacturer's Name, NPS, Flange Class, ASME B16.5, Material Specification, Trade mark |
| Flange manufactured as per |
- American standard (ANSI)
- German (DIN)
- AS 2129: Table D; E; H
- B.S: BS3293, BS4504 , BS1560, BS10
- ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
- ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
- ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
- British standard (BS)
- DIN: 2631, 2527, 2638, 2641, 2642, 2656, 2627, 2635, 2632, 2566, 2573, 2576, 2633, 2634, 2628, 2655, 2629, 2637, 2636
- The other standard: AWWA C207; KS B1503, EN1092-1, GOST12820, JIS B2220; SABS1123; NFE29203; UNI2276
|
Chemical Properties of Stainless Steel F310 Flanges
| Ni |
19 – 22 |
| Cr |
24 – 26 |
| C |
0.25 max |
| Fe |
Balance |
| Mn |
2 max |
| Si |
1.50 max |
| S |
0.03 max |
| P |
0.045 max |
Mechanical Properties of Stainless Steel F310 Flanges
| Density |
8.0 g/cm3 |
| Melting Point |
1454 °C (2650 °F) |
| Tensile Strength |
Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) |
Psi – 30000 , MPa – 205 |
| Elongation |
35 % |
Equivalent Standard of Stainless Steel F310 Flanges
| Stainless Steel SS 310 |
| AISI |
310 |
| UNS |
S31000 |
| Werkstoff Nr. |
1.4841 |
Basic Type of Stainless Steel Flanges
ASTM A182 F310 SS Flanges
ASME B16.5 SS F310 Flanges
ANSI B16.5 SS F310 Forged Pipe Flanges
DN15 F310 SS Flat Welding Flange
ASME B16.5 SS F310 Threaded Flanges
