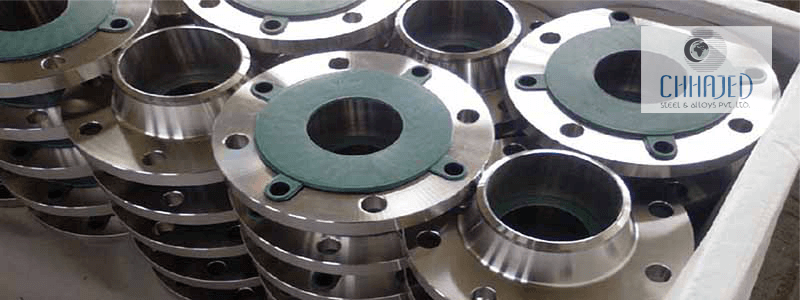

Stainless Steel F316L Flanges
Stainless Steel F316L Flanges Manufacturers in Mumbai, Stainless Steel F316L Flanges Suppliers in Mumbai, Stainless Steel F316L Flanges Stockists in Mumbai, Stainless Steel F316L Flanges Exporters in Mumbai
ASTM A182 F316L Flanges is the thing that yields high similarity with welding and disposes of intergranular consumption brought about by sharpening of grain limit accelerates. In any case, the low substance of carbon additionally shows that amalgam grade 316L has a low underlying strength. Which is the reason makers creating the ASTM A182 GRADE F316L WNRF Flange cure this issue by the expansion of component nitrogen in its compound. Grade 316L Stainless Steel Flanges are likewise alluded to as marine grade steel and consequently is utilized in applications like marine designing which requires welding activities to be performed.
Adding nitrogen likewise further develops the pitting opposition of the amalgam, while guaranteeing the mechanical properties of stainless steel 316L Blind Flange are nearly at standard with the regular compound, grade 316, as nitrogen in any austenitic tempered steel part, for example, the 316L Slip On Flange builds austenite solidness, yet the yield strength is additionally expanded.
Adding nitrogen likewise further develops the pitting opposition of the alloy, while guaranteeing the mechanical properties of stainless steel 316L Blind Flange are nearly at standard with the regular compound, grade 316. The expansion of molybdenum gives Stainless Steel 316L Flanges better in general erosion safe properties, especially higher protection from both pitting and cleft consumption in chlorine containing conditions. In contrast with chromium-nickel based austenitic treated steel grades, the molybdenum bearing ASME SA182 F316L Pipe Flange offers higher downer, stress to crack just as elasticity at high temperatures.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of Stainless Steel F316L Flanges
| Standard Specifications |
ASTM A182 / A240 & ASME SA182 / SA240 |
| Dimensions |
ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Standard |
- BS (British Standard)
- BS1560-3.1
- API 7S-15
- ASA/ANSI/ASME B16.5/16.36/16.47A/16.47B
- B16.47 Series A & B
- B16.48
- API 605
- BS4504
- BS 10
- DIN, EN (European)
- EN-1092
- GOST Flange
- MSS S44
- ISO 70051
- JIS B2220
- API 7S-43
- EN 1092
|
| Size / Range |
1/2 inch (15 NB) - 48 inch (1200NB) DN10~DN5000 or special sizes |
| Connect Type/ Flange Face Type |
Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove Manufacturer and Supplier |
| Pressure Rating ANSI |
Class 150, 300, 600, 900, 1500, 2500 |
| Pressure Calculation in DIN |
6Bar 10, 16, 25, 40 and PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS |
5K, 10, 16 20, 30, 40, 63 |
| UNI |
6Bar, 10, 16, 25, 40 |
| EN |
6Bar, 10, 16, 25, 40 |
| Most common types of |
Threaded, Screwed, Plate, Forged |
| Manufacturer Test Certificates |
EN 10204 3.1B
Third Party Inspection Report
100% Radiography Test Report
Raw Materials Certificate |
| Production technique |
- Forged, Heat treated and machined
|
| Special design |
As per your drawing
AS, ANSI, BS, DIN and JIS
15 NB (1/2 In) - 200 NB (8 In)
Equal and Reducing Configurations |
| Origin |
Indian, West Europe, Korean USA, Japan, |
| Uses & application |
- Power generation
- Oil refinery industry
- Petrochemical
- Petrochemical industry
|
| Pipe Marking |
All SS 304 Flanges are marked as follows: Supplier or Manufacturer's Name, NPS, Flange Class, ASME B16.5, Material Specification, Trade mark |
| Flange manufactured as per |
- American standard (ANSI)
- German (DIN)
- AS 2129: Table D; E; H
- B.S: BS3293, BS4504 , BS1560, BS10
- ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
- ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
- ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
- British standard (BS)
- DIN: 2631, 2527, 2638, 2641, 2642, 2656, 2627, 2635, 2632, 2566, 2573, 2576, 2633, 2634, 2628, 2655, 2629, 2637, 2636
- The other standard: AWWA C207; KS B1503, EN1092-1, GOST12820, JIS B2220; SABS1123; NFE29203; UNI2276
|
Chemical Properties of Stainless Steel F316L Flanges
| Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
| SS F316L |
0.3 max |
2 max |
0.75 max |
0.045 max |
0.030 max |
16 – 18 |
2 – 3 |
10 – 14 |
0.10 max |
Mechanical Properties of Stainless Steel F316L Flanges
| Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| 8.0 g/cm3 |
1454 °C (2650 °F) |
Psi – 75000 , MPa – 515 |
Psi – 30000 , MPa – 205 |
40 % |
Equivalent Standard of Stainless Steel F316L Flanges
| STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
BS |
GOST |
AFNOR |
EN |
| SS F316L |
1.4404 / 1.4435 |
S31603 |
SUS F316L |
316S11 / 316S13 |
03Ch17N14M3 / 03Ch17N14M2 |
Z3CND17‐11‐02 / Z3CND18‐14‐032 |
X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Basic Type of Stainless Steel Flanges
ASTM A182 F316L SS Flanges
ANSI F316L SS RTJ Flanges
ASME B16.5 SS F316L Flanges
ANSI B16.5 SS F316L Forged Pipe Flanges
DN15 F316L SS Flat Welding Flange
ASME B16.5 SS F316L Threaded Flanges
F316L SS KF Blank Flanges
F316L SS Threaded Flanges
