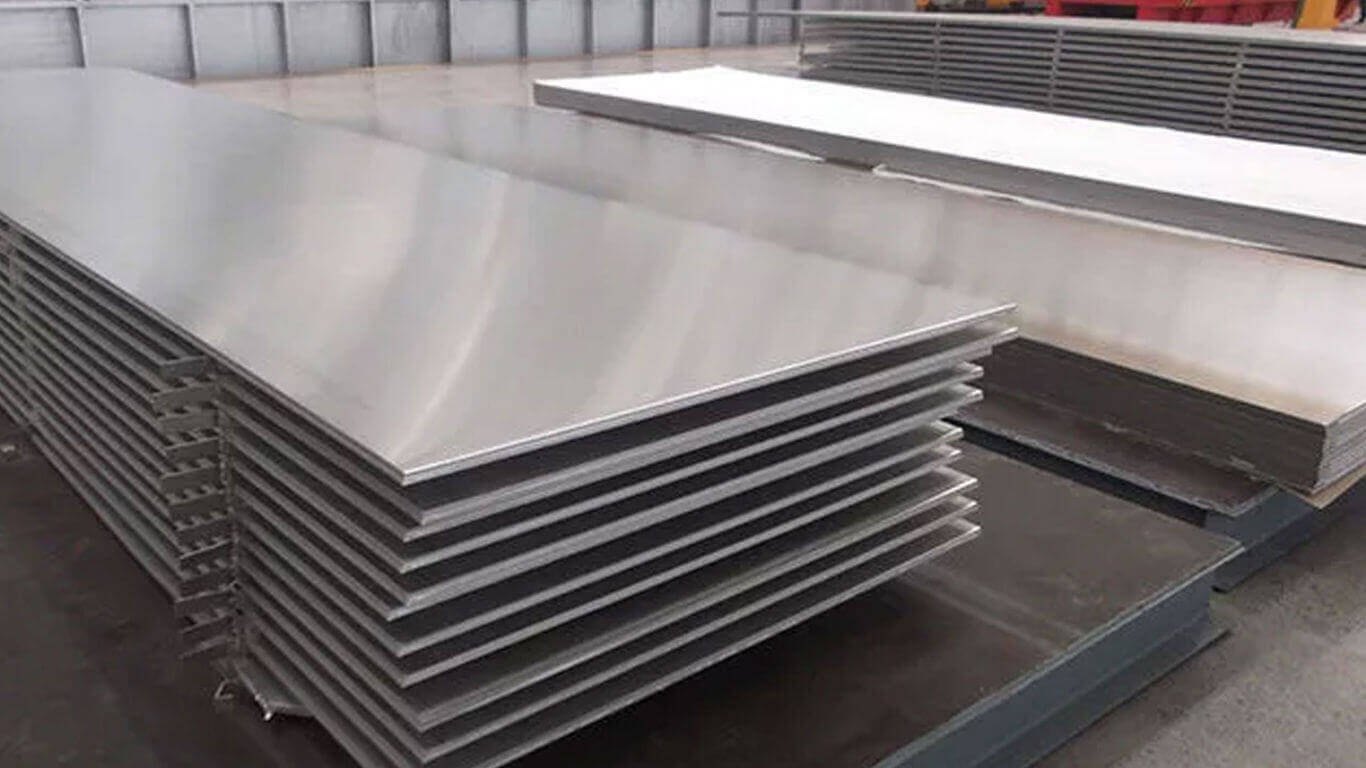

Maraging Steel 300 Sheets & Plates
Maraging Steel 300 Sheets & Plates Manufacturers in Mumbai, Maraging Steel 300 Sheets & Plates Suppliers in Mumbai, Maraging Steel 300 Sheets & Plates Stockists in Mumbai, Maraging Steel 300 Sheets & Plates Exporters in Mumbai
Maraging Steel 300 Plate is a vacuum induction melted and vacuum arc re-melted, low-carbon, nickel-cobalt-molybdenum high-temperature nickel alloy. Maraging steel 300 material can produce yield strengths in excess of 270 ksi through simple, low-temperature heat treatment at 900°F. It also exhibits good ductility at high strength levels, displays excellent notch ductility and outstanding weldability. C300 maraging steel sheet is a nickel/cobalt steel alloy that is essentially carbon-free, other alloying elements include moly, aluminum and titanium.
This combination creates a superior maraging steel that maintains numerous beneficial features such as high strength & toughness, ultrahigh tensile strength, extremely tough. Grade 300 Maraging Steel also has an excellent strength-to-weight ratio so it can be used for high strength structural applications that include aircraft land gear components and for numerous defense and military purposes. Some of the applications are aerospace, die casting, extrusion tooling, missile & rocket motor cases, high performance shafting, gears & fastener.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Chemical Properties of Maraging Steel 300 Sheets & Plates
| Weight% |
C |
Si |
Mn |
S |
P |
Co |
Ni |
Mo |
Ti |
Al |
Fe |
| Maraging 300 |
0.03 max |
0.10 max |
0.10 max |
0.010 max |
0.010 max |
8.0-9.5 |
18.0-19.0 |
4.6-5.2 |
0.55-0.80 |
0.05-0.15 |
Bal |
Mechanical Properties of Maraging Steel 300 Sheets & Plates
| Material |
0.2 % Yield Strength ksi |
Ultimate Tensile Strength ksi |
Elongation in 4D(%) |
Reduction of Area % |
Hardness Rc |
| Maraging 300, Solution Annealed 1500° F (816°C), 1hr, AC |
120 |
150 |
16 |
70 |
30 |
| Solution Annealed Plus Aged 900 ° F (482°C), 3 hrs AC |
280 |
290 |
8 |
40 |
52 |
Thermal Properties of Maraging Steel 300 Sheets & Plates
| Properties |
Metric |
Imperial |
| Thermal expansion co-efficient (@21-480°C/69.8-896°F) |
10.1 µm/m°C |
5.61 µin/in.°F |
| Thermal conductivity (20°C) |
25.3 W/mK |
176 BTU in/hr.ft².°F |
Basic Type of Maraging Steel 300 Sheets & Plates
Maraging Steel 300 Sheets
AISI Maraging Steel 300 Plates
ANSI Maraging Steel 300 Sheets
Maraging Steel 300 Strips
Pure Maraging Steel 300 Plates
