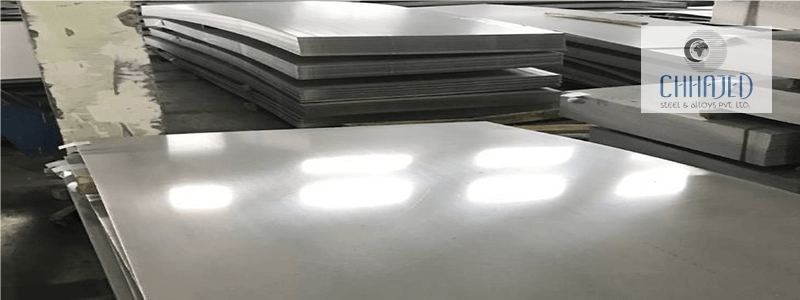

Incoloy 800 Sheets & Plates
Incoloy 800 Sheets & Plates Manufacturers in Mumbai, Incoloy 800 Sheets & Plates Suppliers in Mumbai, Incoloy 800 Sheets & Plates Stockists in Mumbai, Incoloy 800 Sheets & Plates Exporters in Mumbai
Incoloy 800HT Plate is ableto remain stable and maintain its austenitic structure even after long time exposures to high temperatures. They are an alloy of nickel, iron and chromium. It possesses more than the strength to withstand the basic stress caused by heat. Incoloy 800 Sheet exhibits good ductility and hence can be formed using conventional methods. It can be annealed after cold working. And annealing should be done at 982°C for 15 min and then it should be air cooled. Alloy 800 Plates strength and resistance makes it versatile that is not found in many alloys. They are are useful for applications such as heating elements, heat exchanger, carburising equipment and sheathing and nuclear steam generator tubing.
Inconel 800 Plate is primarily useful in applications with temperatures up to 1100° F. They can be hot worked at temperature ranges of 871-1232°C and Cold working can be done by using standard tooling. It is effective in many aqueous environments as it is in high-temperature situations and has the ability to withstand erosion and other decay that is often related with aqueous settings. ASTM 409 UNS N08800 Sheet Plates is one of the most effective materials for use in heating element sheathing and carbonizing equipment. It has has high levels of oxidation resistance and carbonization. ASTM B409 Incoloy 800H Plate has similar machinability to that of iron based alloy. And it tends to work-harden during machining. It has characteristics of good strength, high resistance to oxidizing, reducing and aqueous environments.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of Incoloy 800 Sheets & Plates
| Specifications |
| ASTM A168 / ASME SA168 |
| Grade |
| Incoloy 800 (UNS N08800) |
| Standard |
| ASTM, ASME and API |
| Thickness |
| 4.0mm – 100mm |
| Specialize |
| Shim Sheet, Perforated Sheet, B. Q. Profile. |
| Form |
| Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| Finish |
| Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness |
| Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
Chemical Properties of Incoloy 800 Sheets & Plates
| Grade |
| C |
| Mn |
| Si |
| S |
| Cu |
| Fe |
| Ni |
| Cr |
| Al |
| Ti |
|
| 800 |
| 0.10 max |
1.50 max |
1.00 max |
0.015 max |
0.75 max |
39.50 min |
30.00 – 35.00 |
19.00 – 23.00 |
0.15 – 0.60 |
0.15 – 0.60 |
| 800H |
| 0.05 – 0.10 |
1.50 max |
1.00 max |
0.015 max |
0.75 max |
39.50 min |
30.00 – 35.00 |
19.00 – 23.00 |
0.15 – 0.60 |
0.15 – 0.60 |
| 800HT |
| 0.06 – 0.10 |
1.50 max |
1.00 max |
0.015 max |
0.75 max |
39.50 min |
30.00 – 35.00 |
19.00 – 23.00 |
0.15 – 0.60ᴬ |
0.15 – 0.60ᴬ |
Mechanical Properties of Incoloy 800 Sheets & Plates
| Element |
| Density |
| Melting Point |
| Tensile Strength |
| Yield Strength (0.2%Offset) |
| Elongation |
|
| 800 / 800H / 800HT |
| 7.94 g/cm3 |
1385 °C (2525 °F) |
Psi – 75,000 , MPa – 520 |
Psi – 30,000 , MPa – 205 |
30 % |
Equivalent Standard of Incoloy 800 Sheets & Plates
| STANDARD |
| WERKSTOFF NR. |
| UNS |
| JIS |
| BS |
| GOST |
| AFNOR |
| EN |
| OR |
|
| Incoloy 800 |
| 1.4876 |
N08800 |
NCF 800 |
NA 15 |
ЭИ670 |
Z8NC32-21 |
X10NiCrAlTi32-20 |
XH32T |
| Incoloy 800H |
| 1.4958 / 1.4876 |
N08810 |
NCF 800H |
NA 15(H) |
ЭИ670 |
Z8NC33-21 |
X5NiCrAlTi31-20 |
XH32T |
| Incoloy 800HT |
| 1.4859 / 1.4876 |
N08811 |
NCF 800HT |
NA 15(HT) |
ЭИ670 |
– |
X8NiCrAlTi32-21 |
XH32T |
